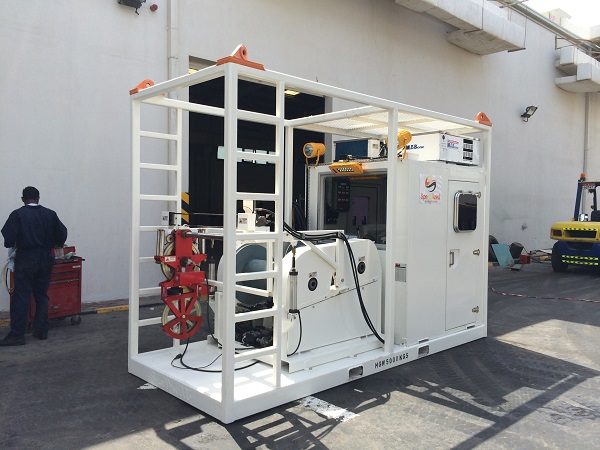

DOUBLE DRUM SLICKLINE UNITS

KEY FEATURES

  1. DNV 2.7-1 design compliant skid

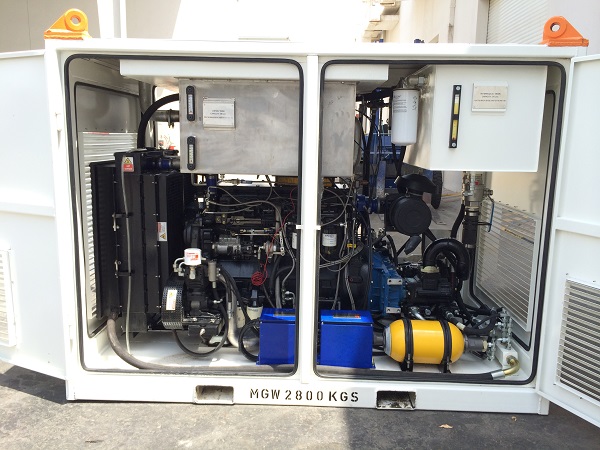

  2. 125 HP 4-cylinder Zone-II certified diesel engine prime mover
  3. Double drum suitable for slickline and braided line
  4. 0.108” / 0.125” Slickline & 3/16” / 7/32” / 5/16” braided line

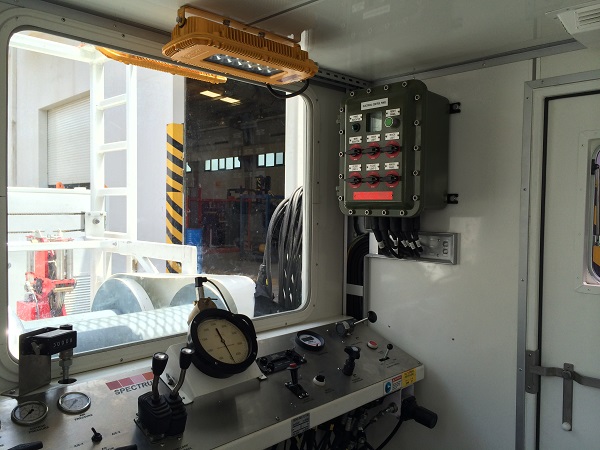

  5. Ergonomically designed operator control console
  6. Digital DATA Acquisition panel
  7. Battery operated backup panel
  8. Integrated 3-Wheel measuring head
  9. Weight indicator
  10. Mechanical depth counter
  11. 24 VDC electric connection from battery on Zone-II enclosure. The battery charged from belt driven explosion proof alternator on the engine

Options

  1. Rig-Safe unit is available upon request
  2. Air-conditioned operator cabin
  3. Drums for various cable sizes and capacity can be offered upon request
  4. Single lift 20 Ft containerized unit also provided where there are no weight restrictions. This will be flexible to use in offshore and onshore
