Single E-line

SINGLE DRUM
E-LINE UNITS

DNV 2.7-1 design compliant crash frame
175 HP 6-CYLINDER Zone-II certified diesel engine prime mover

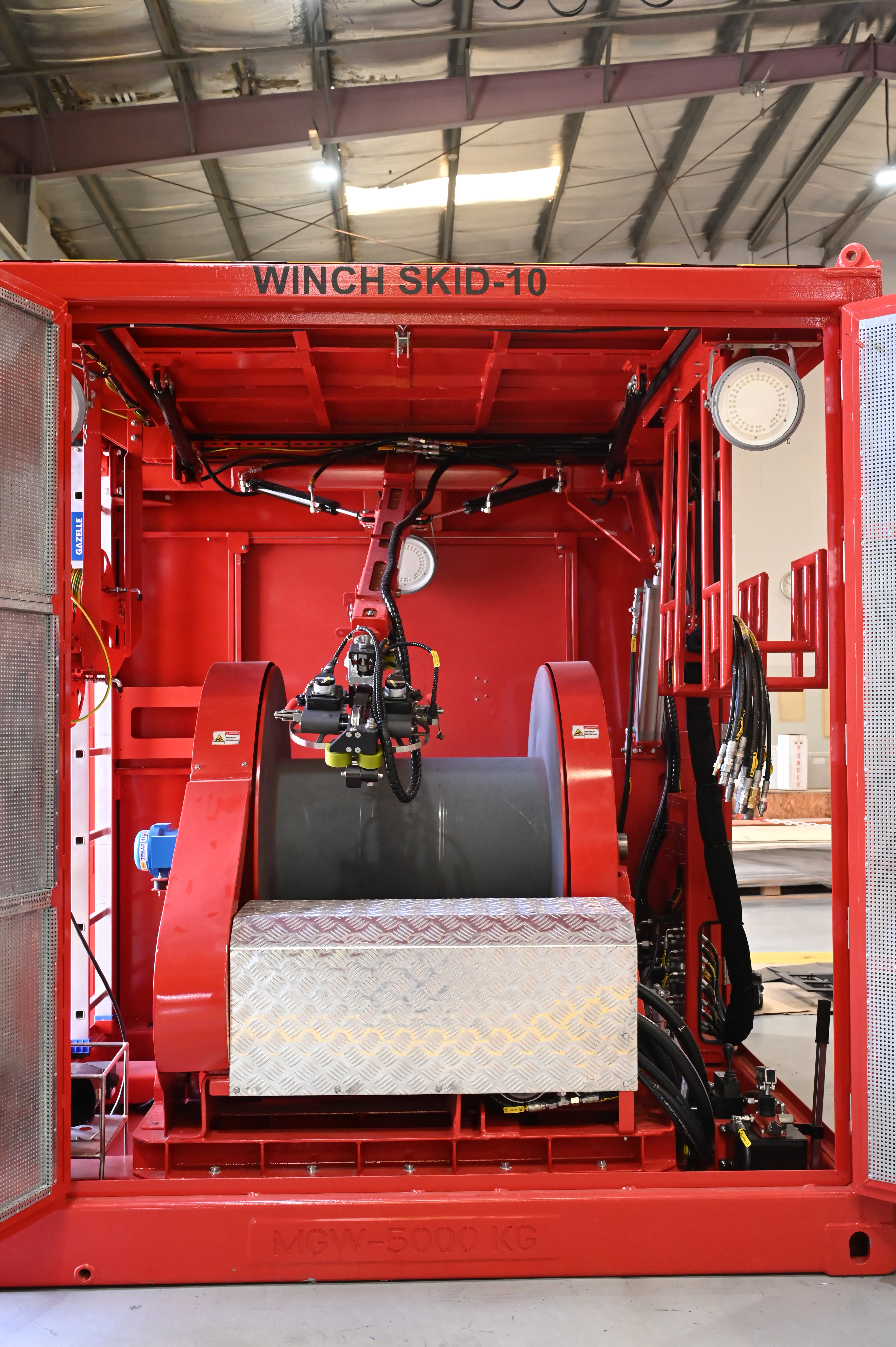

Single drum suitable for cased hole operations. Core diameter 24”
Straight line E-line measuring head with hydro-pneumatic overhead arm control
Constant tension mode

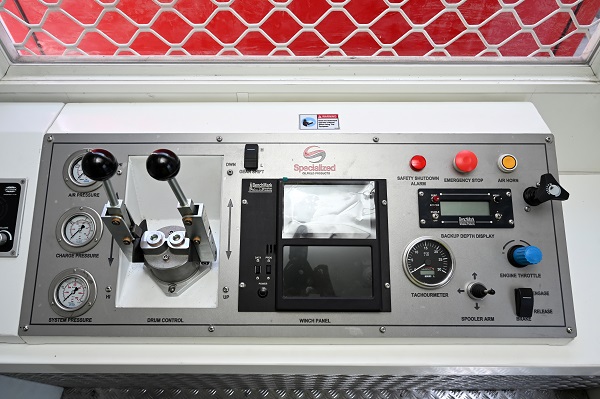

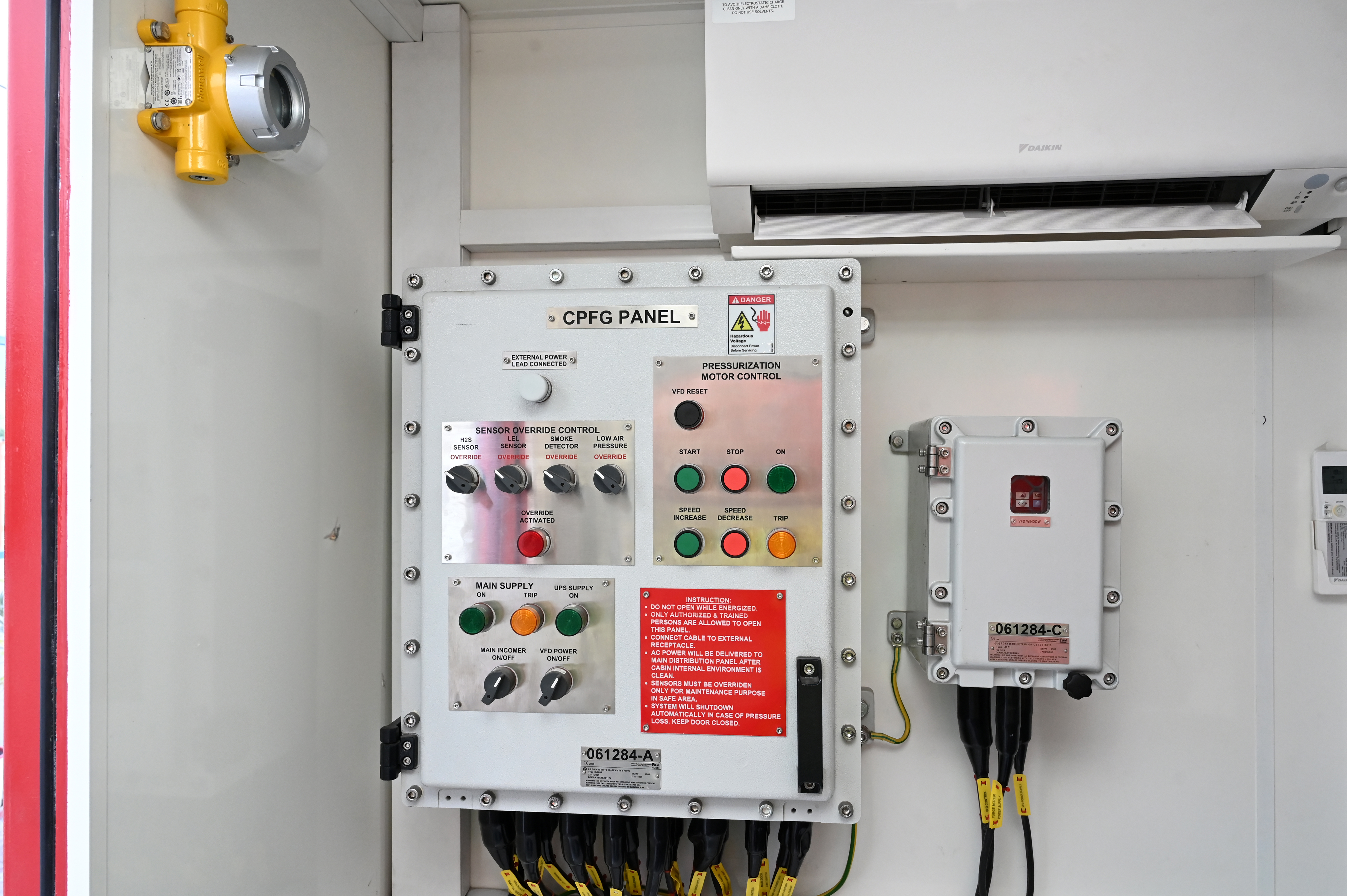

Pressurized and air-conditioned operator cabin
19” Instrumentation rack for the warrior system, shooting panel, monitor and UPS
The unit is Zone-2 certified
Drum is equipped ATEX certified slipring collectors
30 kVA ATEX certified 3 phase hydraulic driven generator
1300 lpm hydraulic driven compressor

Drums for various cable sizes and capacity can be offered upon request

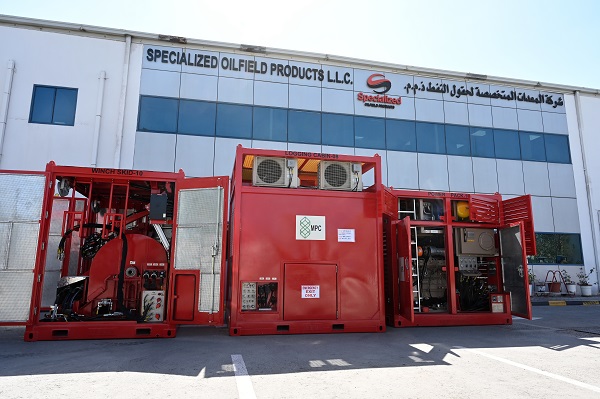

Single lift 20 Ft containerized unit also provided where there are no weight restrictions. This will be flexible to use in offshore and onshore
