Containirized

CONTAINERIZED
TRUCKS

Standard 20'ISO container foot print wireline truck unit suitable to be mounted on 6x4 / 4x4 chassis
Single or dual drum is available upon requirement
Suitable for both day and night operation with well illuminated cabin and outside flood lights

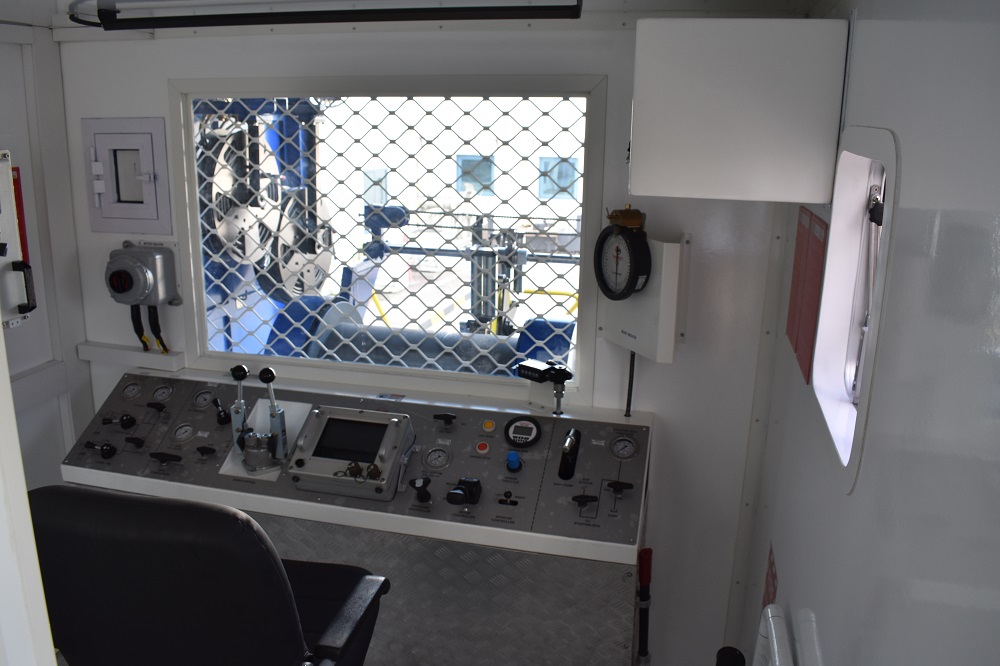

Operator cabin equipped with dual air conditioner, workbench and an emergency door
Unit equipped with close loop hydrostatic reansmission, close loop hydraulic system is ideal for logging & MPLT operations
Drums suitable for different slickline wire sizes range 0.092-0.160" and braided line 3/16" with more than 20,000 ft. wire capacity
Line speed varies 3 ft./min to 1900 ft./min
Line pull max 8000 lbs
Powered by 111 Hp Zone-2 diesel engine power pack
Truck engine PTO driven units are also avalible in Rig safe spec

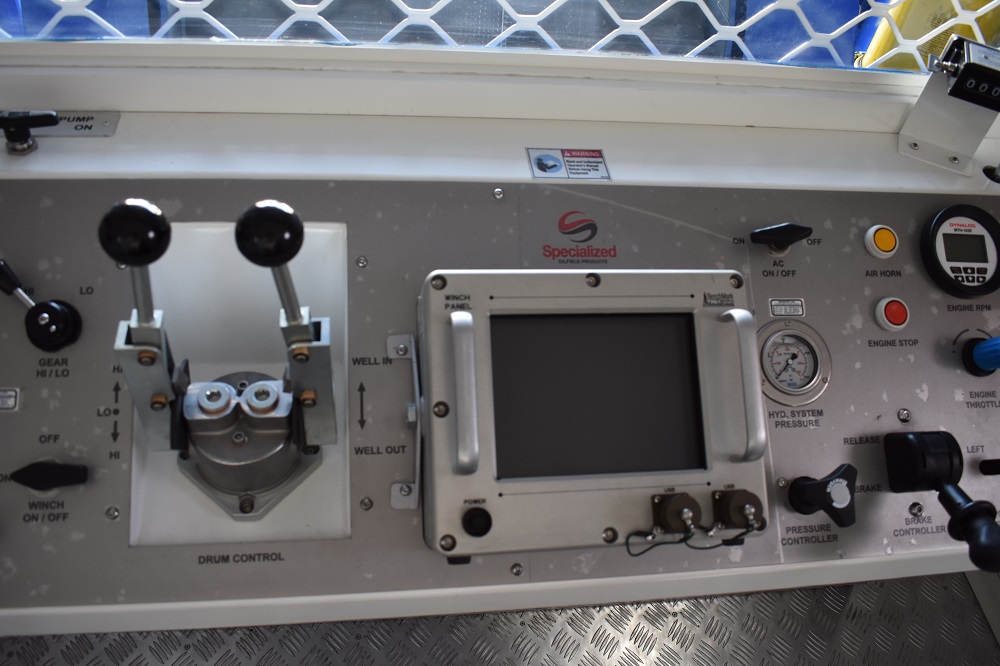

Benchmark ATEX approved measuring head and data acquisition system (Combined depth, tension and speed
Hydraulic driven air conditioner for operator cabin is suitable for desert climate condition, suitable up to 60 ambient temperature
Hydraulic weight indicator and both digital and mechanical depth counter
ATEX rated electrical air conditioner in special cases
Measuring wheels are suitable to handle wires 0.092 to 0.160" and up to ¼. Matric and Feet unit wheels are available upon choice

Sand blasted to SA 2-1/2 grade and apply 3 coat paint by customer specified colour
