Crane Trucks

CRANE TRUCKS

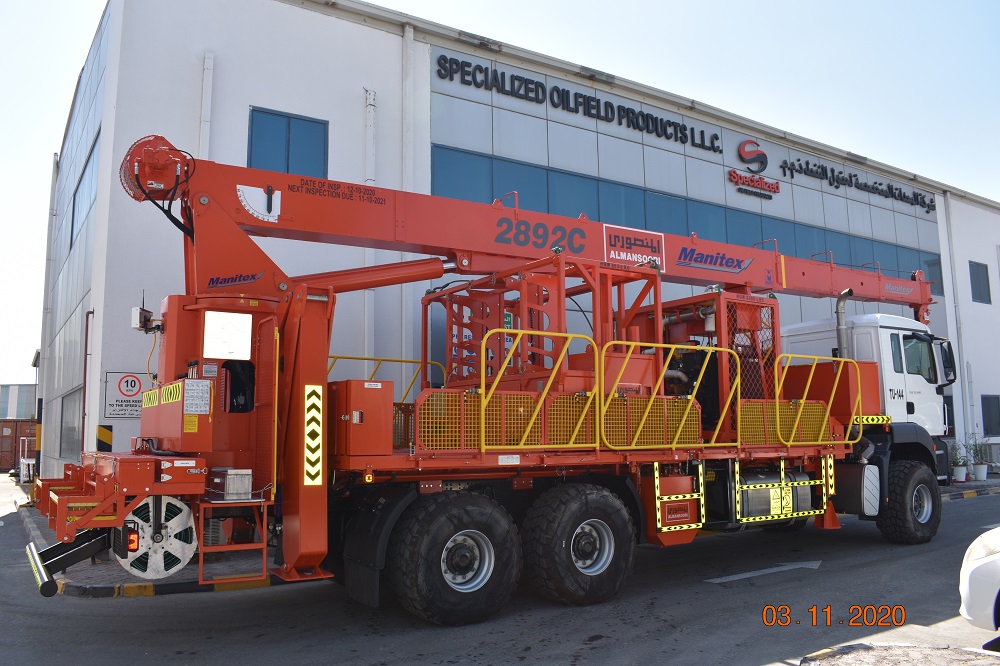

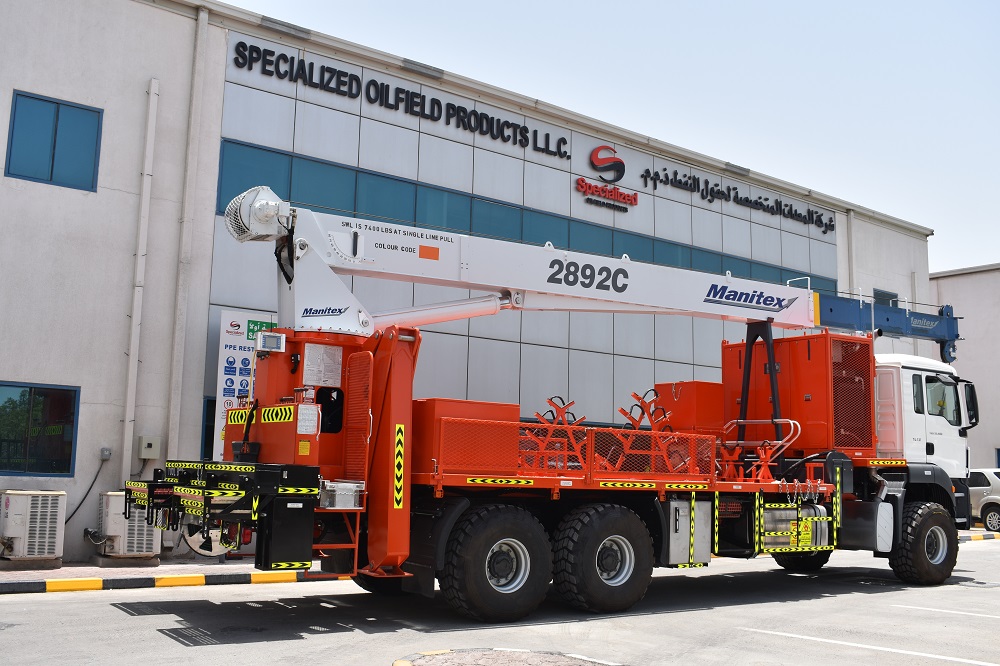

Crane truck unit enables to lift the whole lubricator assembly and BOPs on the well head, this unit supports the containerized wireline truck's lifting requirements'
Crane is 4 section 92'(28 m) long boom and 28 ton lift capacity @ 5ft. radius, and @ 10m radius with 97 ft. vertical hight, 3.8 ton lift capacity
Crane swing system is 372° non-continuous rotation
Equipped with open loop hydrostatic transmission for the crane functions, powered by 84 HP Zone-2 diesel engine power pack
Truck engine PTO driven units are also avaliable in Rig safe spec
Foldable ladder with hand rails on both side of the deck
Crane can be operated from the rear crane deck, engine throttle and emergency stop button also available on the operator platform
Lubricator racks for 3",5" and 7" are on the truck deck
BOPs can be fixed on the threaded stubs on the truck deck
X-over stand
Rear ladder with tool box for stem bars mechanical jars etc..
Tool boxes are available on top of the deck and underneath the deck
Air compressor with 1300 lpm @ 8 bar
Equipped with 10K Psi high pressure test unit with chart recorder, unit is penumatically operated with HP/LV and LP/HV combination pumps

Sand blasted to SA 2-1/2 grade and apply 3 coat paint by customer specified colour
