1. Steel construction
2. Skid structure design compliance to BS EN 12079 / DNV 2.7-1
3. Sand blast to SA 2/1 and 3 coat paint
4. Jacking castors wheels and forklift pockets for ease of ground handling
5. Open console skids shall be provided with sun canopy
6. High grade Aluminium construction for light weight units
7. Ultra-light weight units up to 2700 lbs

1. Close loop variable displacement pump and motor
2. Close loop hydraulic system ideal for logging & MPLT operations
3. Open loop hydraulic ideal for slickline and fishing operations
4. Powered by Zone-2 diesel engine power pack
5. Hydraulic driven air conditioner for operator cabin suitable for tropical climate
6. ATEX rated electrical air conditioner in special cases

1. Winches suitable for different wire sizes range 0.092-0.160" more than wire 20,000 ft capacity
2. Line speed varies 3 ft/min to 2700 ft/min
3. Line Pull max 8000 lbs
4. Benchmark ATEX approved measuring head and data acquisition system ( combined depth, tension and speed)
5. Hydraulic weight indicator and benchmark tension gauges
6. Digital and manual depth counter
7. Measuring wheels are suitable to handle wires 0.092 to 0.160" and up to ¼"

1. Diesel engine ranges from 80 to 130 HP
2. Power pack safety options: Zone-2, Rig safe
3. Engine starter options such as spring, hydraulic, pneumatic

1. Manual or pneumatic brakes of customer choice
2. Duplex chain drive
3. planetary or manual 4 speed gear box

1. Dual ram BOP control inbulit on the operator console
2. stuffing box pressure supply by hand pump
3. BOP control is fail safe design by hydraulic pump, accumulator and hand pump if incase either one of this failed in emergency

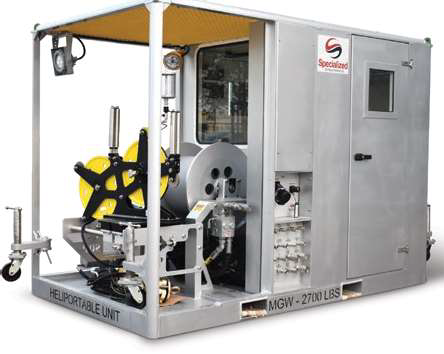

Winch unit and Hydraulic Power Pack weighs less than 2700 lbs. including diesel, hydraulic oil, jacking castor wheels and lifting gears.

1. Drum capacity 18000 ft. 0.108" and 0.0125"
2. 16000 BTU A/C operator cabin
3. Max.speed @ core: 2000 fpm
4. Max.speed @ rim: 3800 fpm
5. Max.line pull: 3500 lbs
6. Integrated digital measuring system with ATEX certified touch screen data acqisition panel on the operator dash board
7. 100 HP zone-2 rated hydraulic power back
8. Lifiting gears with chopper swivel
9. Jacking castor wheels and forklift pockets for ground handling of the skids
10. Automatic emergency engine shutdown
11. Additional mechanical depth counter on the dash board
12. Hydraulic weight indicator 0-3000 lbs measuring range
